Indoor Ambient Temperature and Humidity Sensor LoRa [WAN]

• Frequency band 868 MHz (for use mainly in EUROPE)
• Suitable for indoor use
• Compact Design
• Easy to deploy
• Freestanding or wall mounted
• Replaceable battery
• Up to 15 years autonomy

Specifically designed for indoor applications in an ambient environment, the Enless Wireless Wireless LoRa / LoRaWAN humidity and temperature transmitter allows you to monitor occupant comfort levels, thanks to its integrated sensors of temperature and humidity (data °C – %rH ) and save energy by monitoring HVAC systems – Heating Ventilation Air Conditioning – in situ.

Data from the sensor can be transmitted according to two radio protocols : the LoRa Enless Wireless private mode (proprietary) or the LoRaWAN mode (operated or private). To learn more about these communication protocols, see our dedicated LoRa LoRaWAN page.

Our LoRa / LoRaWAN temperature and humidity transmitter is suitable for many applications and sectors.

Part No. : TX T&H AMB 600-021

Indoor Ambient VOC, CO2, Temperature and Humidity sensor LoRa[WAN]

• Suitable for indoor use
• Compact Design
• Easy to deploy
• Freestanding or wall mounted
• Replaceable battery
• Up to 5 years autonomy

Specifically designed for indoor applications in an ambient environment, the Enless Wireless LoRa / LoRaWAN CO2, VOC, humidity and temperature transmitter allows you to monitor occupant comfort levels, thanks to its integrated sensors of CO2 (ppm), VOC (ppb), temperature (°C) and humidity (%rH).

The CO2 and the VOC contents are the main indicators of the air quality breathed by users.

CO2, VOC and air quality have a direct influence on the daily comfort of occupants in enclosed spaces, such as offices, and can trigger side effects like fatigue, drowsiness, headaches etc. The odourless carbon dioxide is caused by pollution, and of course from human breathing. Volatile organic compound particles can come from household products, paints, etc… The CO2 content is measured as a percentage of air volume or as “ppm” (part per million). Thus 1,000 ppm is equal to 0.1% of carbon dioxide in the air. The VOC content is measured as “ppb” (part per billion). Thus 1,000 ppb is equal to 0.01% of particles in the air.

Data from the sensor can be transmitted according to two radio protocols : the LoRa Enless Wireless private mode (proprietary) or the LoRaWAN mode (operated or private).

Our temperature, humidity, VOC and CO2 transmitter is suitable for many applications and sectors

Part No. : TX CO2 / VOC / T&H AMB 600-023

Outdoor Temperature sensor LoRa [WAN]

• Very long radio range
• IP 65 resistant enclosure for outdoor environments
• Up to 15 years autonomy
• Replaceable battery
• Quick and easy to install

Many sectors (building – smart building – industry – agriculture…) integrate temperature monitoring activities into their processes.

This Enless Wireless LoRa / LoRaWAN “hardened” (IP65) transmitter with integrated temperature sensor is used for temperature monitoring (°C) for different applications in outdoor environments and/or in areas subject to extreme conditions.

The robustness of our LoRa / LoRaWAN temperature transmitter – IP 65 housing – and its high environmental tolerance (-20°C / +55°C) allow it to withstand any type of environment. Its integrated, high-precision temperature sensor enables reliable and accurate °C data.

Alerts identify where high and low-temperature thresholds are exceeded and allow corrective actions to be taken (installation or maintenance on defective heaters, management of windows and doors, air circulation, etc.).

Data from the sensor can be transmitted according to two radio protocols : the LoRa Enless Wireless private mode (proprietary) or the LoRaWAN mode (operated or private).

This transmitter incorporates high-performance D-type batteries and thus gives it a very high autonomy of up to 15 years.

 Part No. : TX TEMP INS 600-031

Temperature sensor LoRa [WAN] 1 External contact probe [PT1000]

• Very long radio range
• IP 65 resistant enclosure for outdoor environments
• PT1000 contact probe for remote measurements from -180°C to + 250°C
• Up to 15 years autonomy
• Replaceable battery
• Quick and easy to install

This Enless Wireless LoRa / LoRaWAN IP65 transmitter with external temperature contact probe allows you to measure temperatures (°C) in a remote manner, on contact with surfaces.

The robustness of our transmitter – IP 65 housing – and its high environmental tolerance (probe temperature range -180°C / +250°C) allow it to withstand any type of “outdoor” environment, sometimes under extreme conditions.

Data from the sensor can be transmitted according to two radio protocols : the LoRa Enless Wireless private mode (proprietary) or the LoRaWAN mode (operated or private).

This temperature transmitter is suitable for many applications including :

• Temperature monitoring in cold rooms, cooling towers, refrigerated outdoor containers (chemical, agri-food industries, etc.)
• Cold chain management applied to drug storage and temperature control in hospital environments, housing structures for ageing and/or vulnerable populations.
• Supervision of HVAC (heating, ventilation, air conditioning).
• Temperature monitoring in agricultural environments.

This product is LoRa/ LoRaWAN compatible. It allows you to build an operated or private network. In LoRaWAN public mode, high-precision °C data is retrieved through the transmitter and sent to the LoRa network operator cloud at a flexible frequency. In LoRa Enless Wireless private mode, the data is transmitted over the radio to our Modbus receiver, which is usually connected to a gateway. In LoRaWAN’s private mode, the data flows directly from our transmitters to the gateway.
High and low temperature thresholds can be viewed via the supervision system in place which also allows the configuration of alerts.

This transmitter incorporates high-performance D-type batteries and thus gives it a very high autonomy of up to 15 years.

Part No. : TX TEMP CONT1 600-032

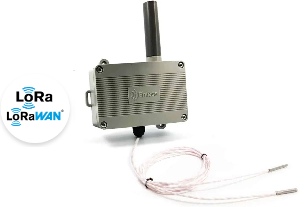

Outdoor Temperature Sensor LoRa [WAN] 2 External contact probes [PT1000]

• 2 PT1000 contact probes for remote measurements from -180°C to + 250°C
• Very long radio range
• IP 65 resistant enclosure for outdoor environments
• Up to 15 years autonomy
• Replaceable battery
• Quick and easy to install

This Enless Wireless LoRa / LoRaWAN IP65 transmitter with two external temperature contact probes allows you to measure two temperature points (°C) simultaneously in a remote manner, on contact with surfaces.

The robustness of our transmitter – IP 65 housing – and its high environmental tolerance (probe temperature range -180°C / +250°C) allow it to withstand any type of “outdoor” environment, sometimes under extreme conditions.

Data from the sensor can be transmitted according to two radio protocols : the LoRa Enless Wireless private mode (proprietary) or the LoRaWAN mode (operated or private).

Thanks to its two 2.0m probes, this temperature transmitter is especially suitable for applications such as monitoring of temperatures on inlet/outlet fluid circuits of all types and, in particular, continuous observation of sanitary hot water networks for preventing the health risk of legionella. It is also often used for temperature monitoring in cold rooms, or in agricultural environments.

This transmitter incorporates high-performance D-type batteries and thus gives it a very high autonomy of up to 15 years.

Part Number : TX TEMP CONT2 600-232
